TASMOTA WiFi Plug 16A Works With Home Assitant Electric Consumption Monitoring UK Standard ESP8285

For more accurate energy consumption measurements this device requires power monitoring calibration.

Power Calibration Video Tutorialhttps://www.youtube.com/watch?v=jXk7dKJ6GIk

Specification

• Support TASMOTA

• Product name: WiFi Smart Plug UK Standard

• Max power: 3000W(resistance loading)

• Working voltage: AC100-240V(50/60Hz)

• Wireless Type: 2.4GHz 802.11b/g/n

• Material: ABS flame retardant polymer

• Power consuming:<0.3W

• Working current: Max 16A

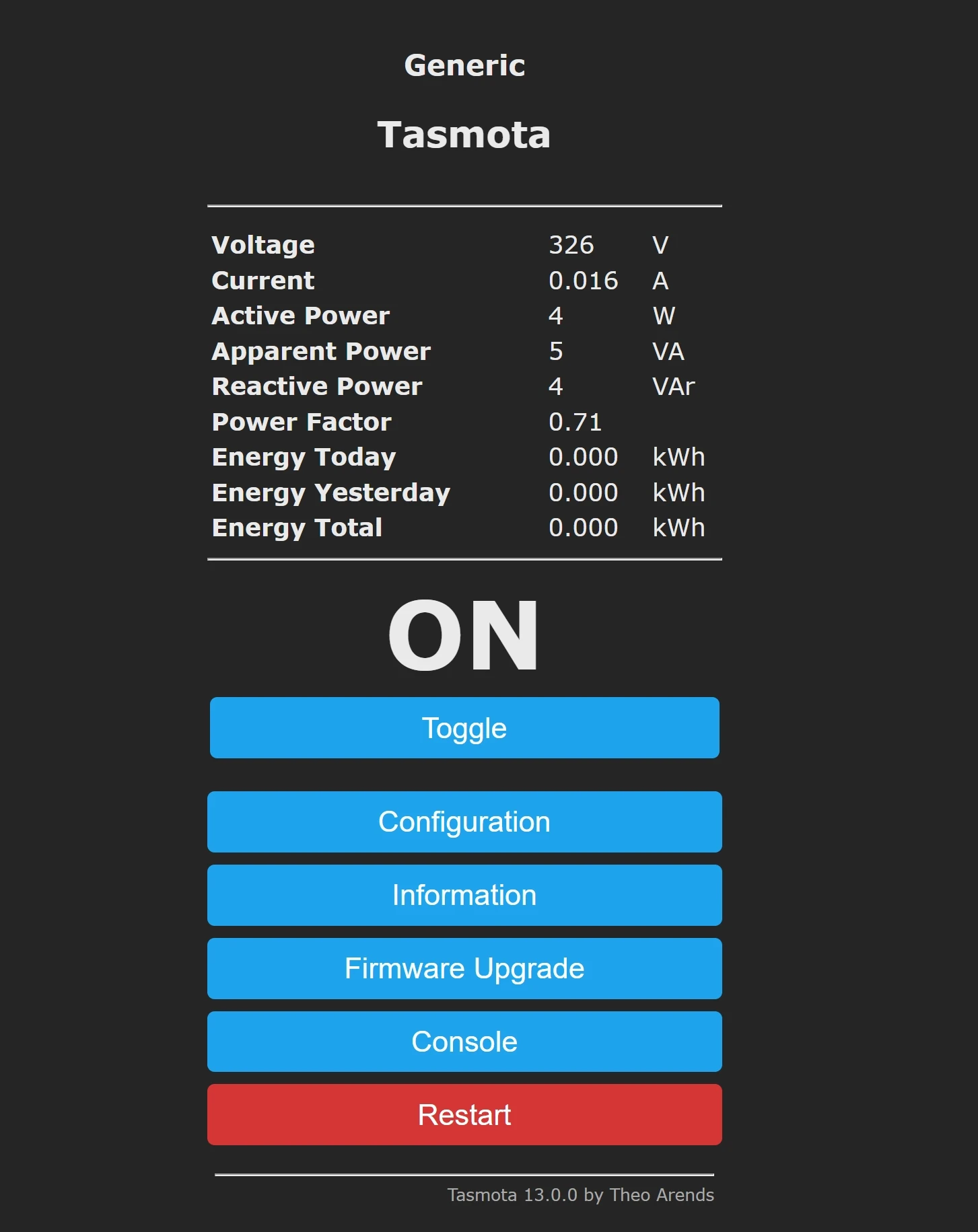

• With Power Energy Monitor

• Dimension: 50mm*50mm*84mm

• Cord Length:Wall Mounted

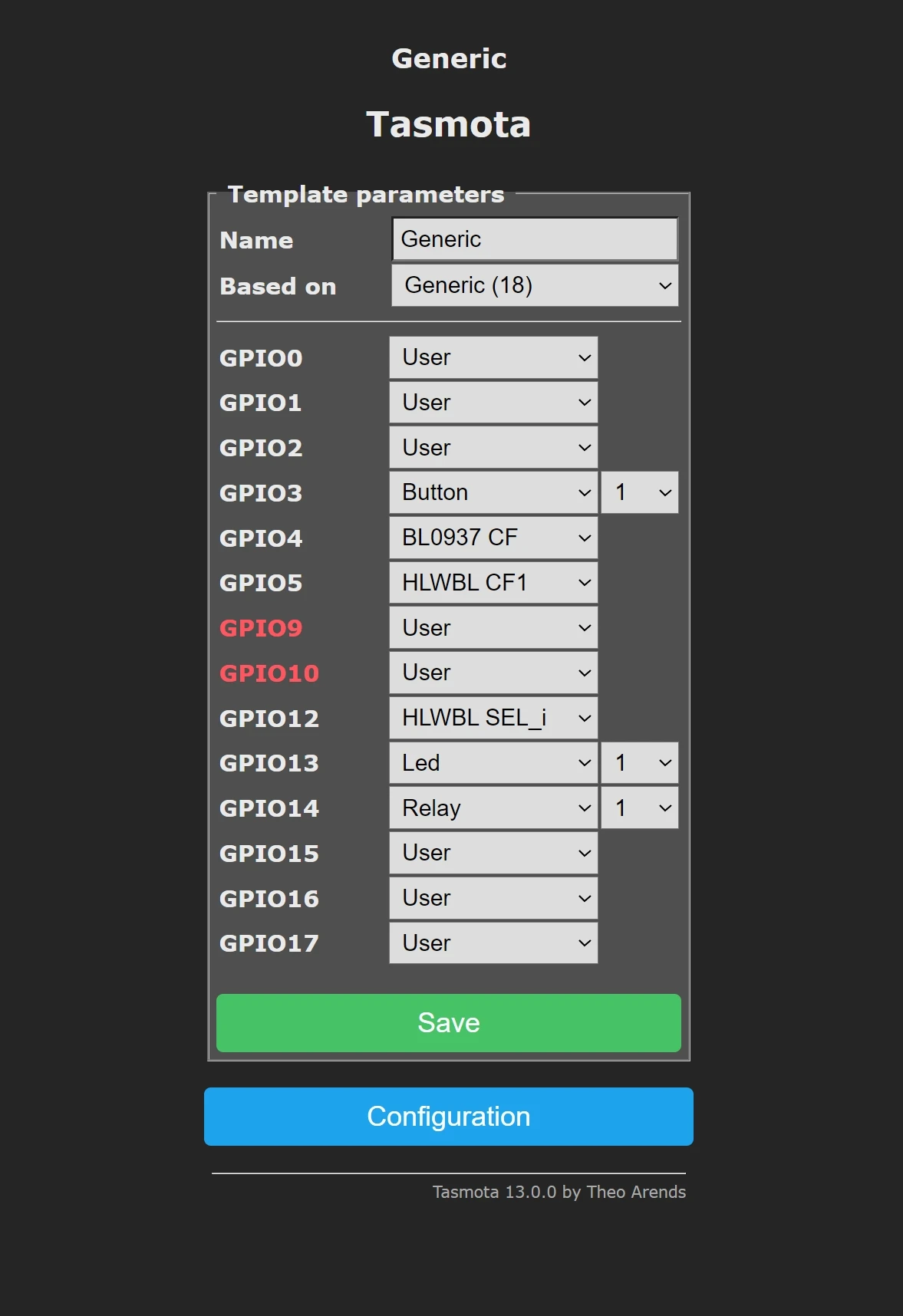

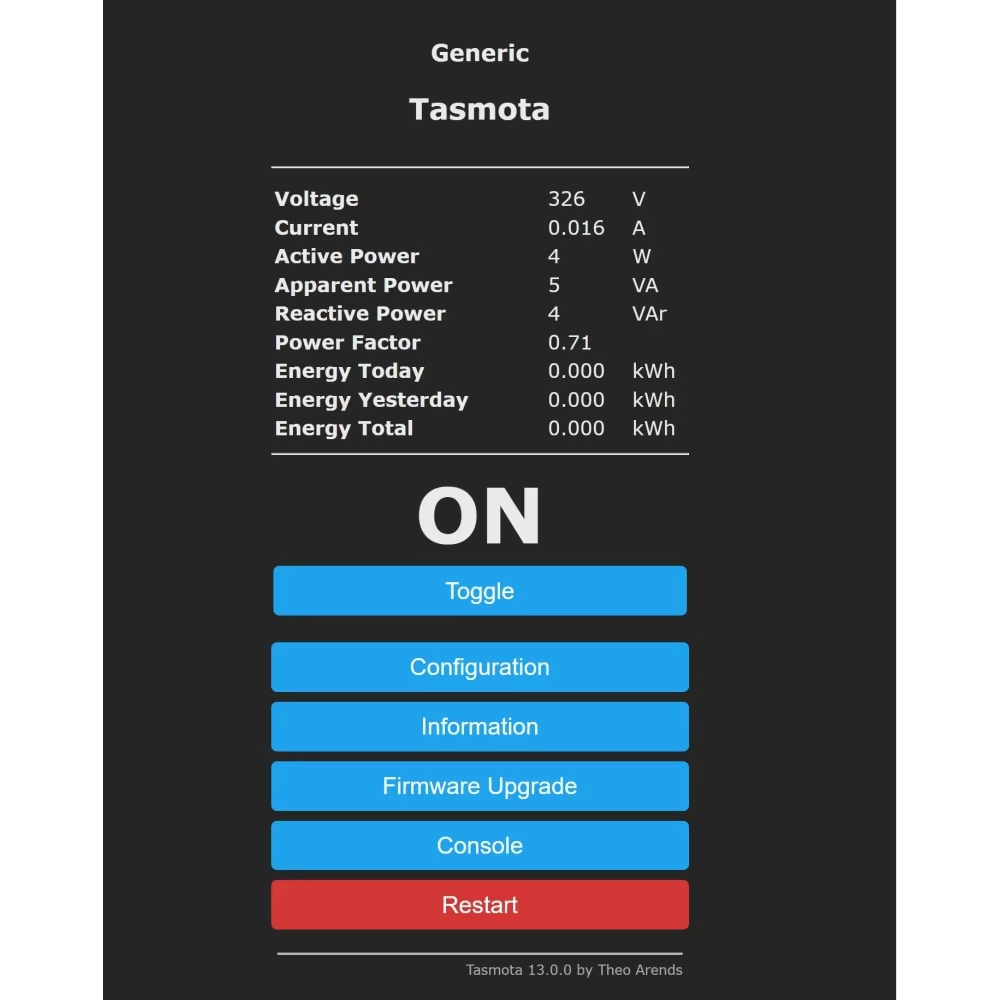

{"NAME":"Generic","GPIO":[1,1,1,32,2720,2656,1,1,2624,288,224,1,1,1],"FLAG":0,"BASE":18}

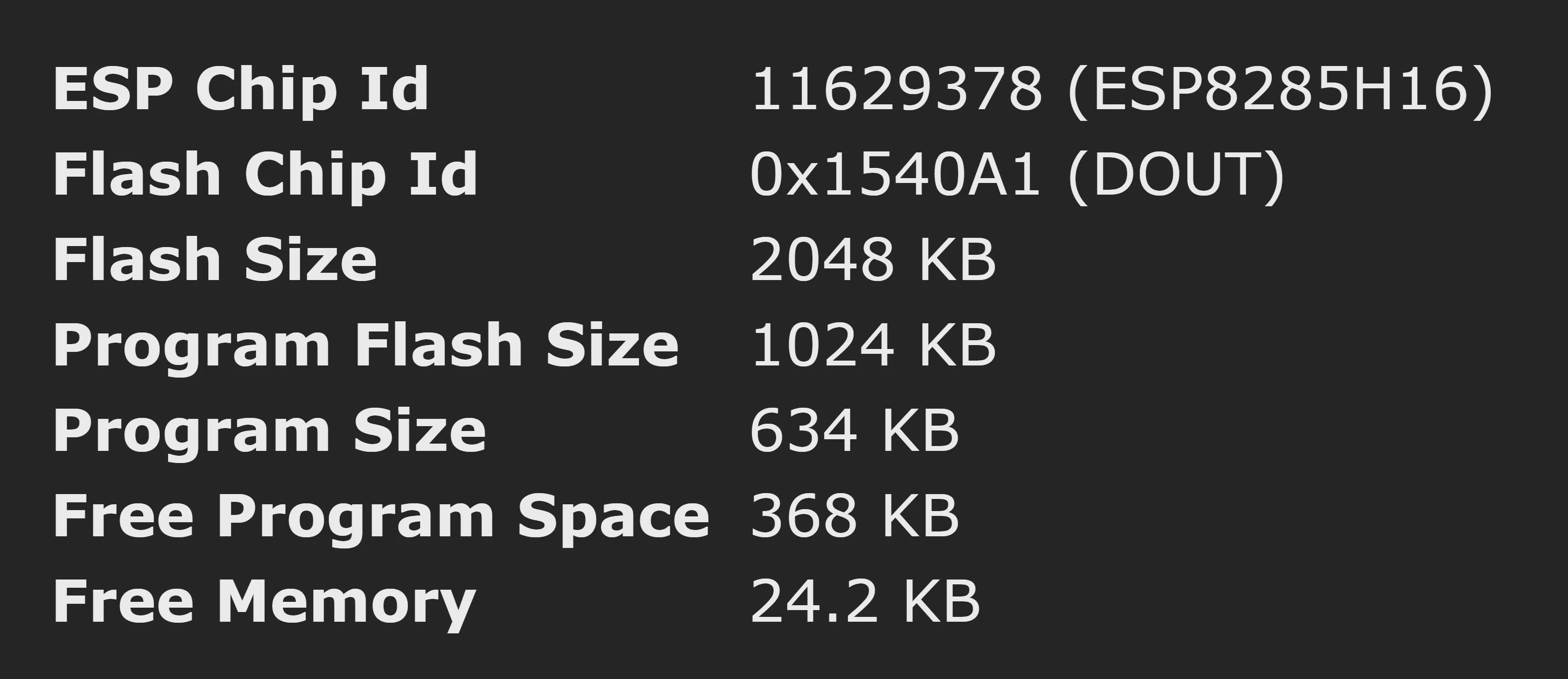

ESP Chip Id11629378 (ESP8285H16)

Flash Chip Id0x1540A1 (DOUT)

Flash Size2048 KB

Program Flash Size1024 KB

Program Size634 KB

Free Program Space368 KB

Free Memory24.2 KB

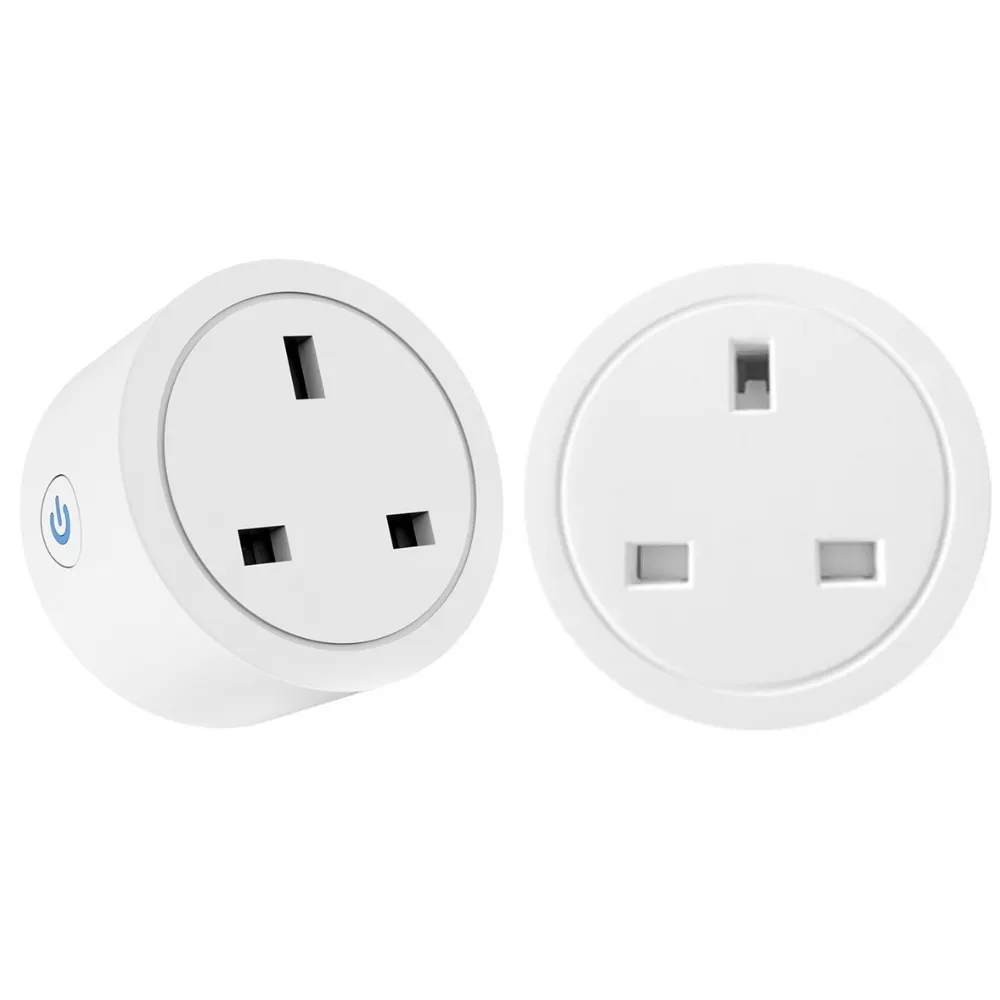

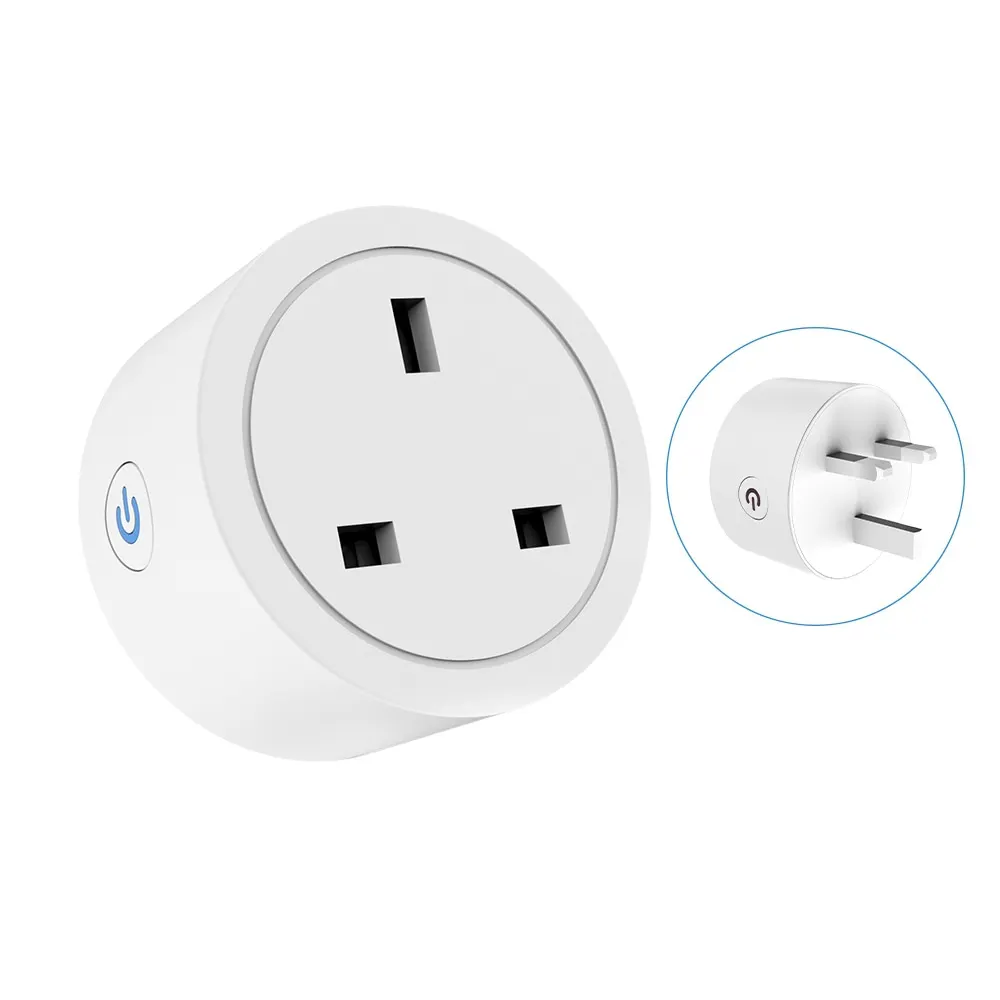

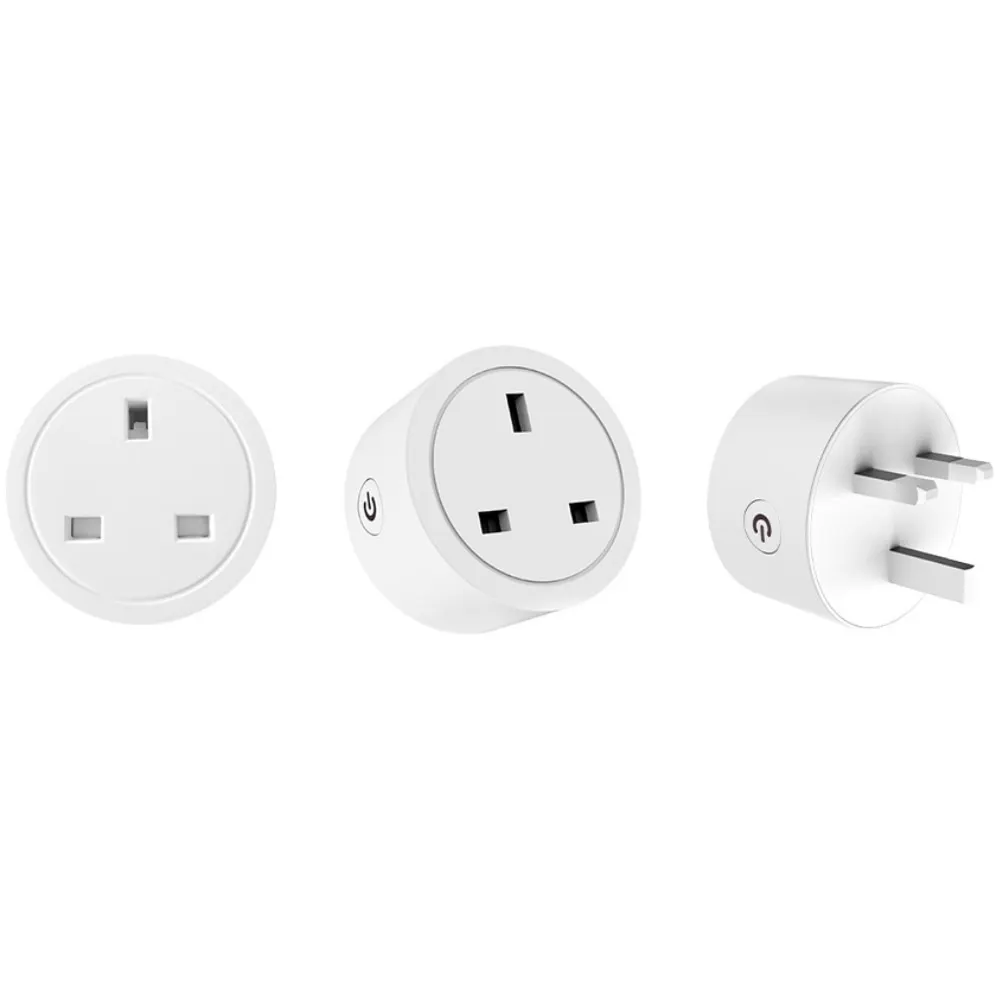

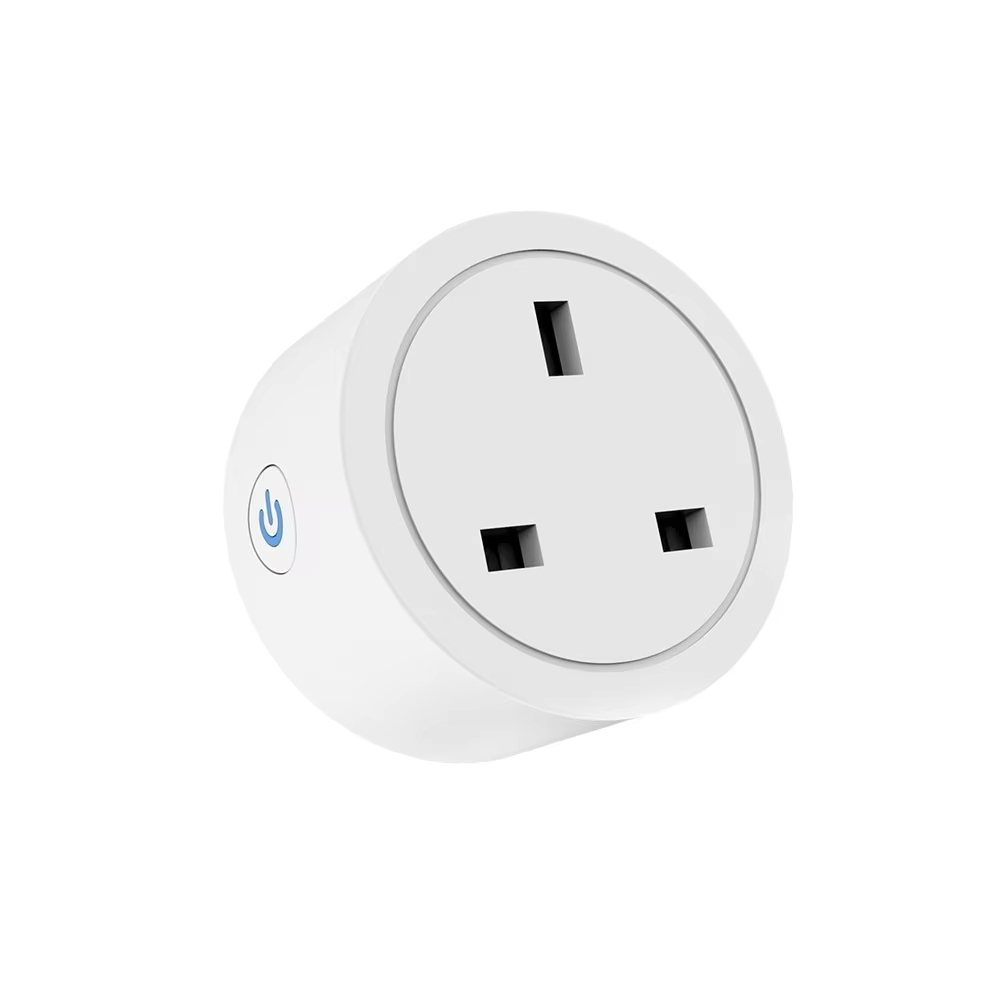

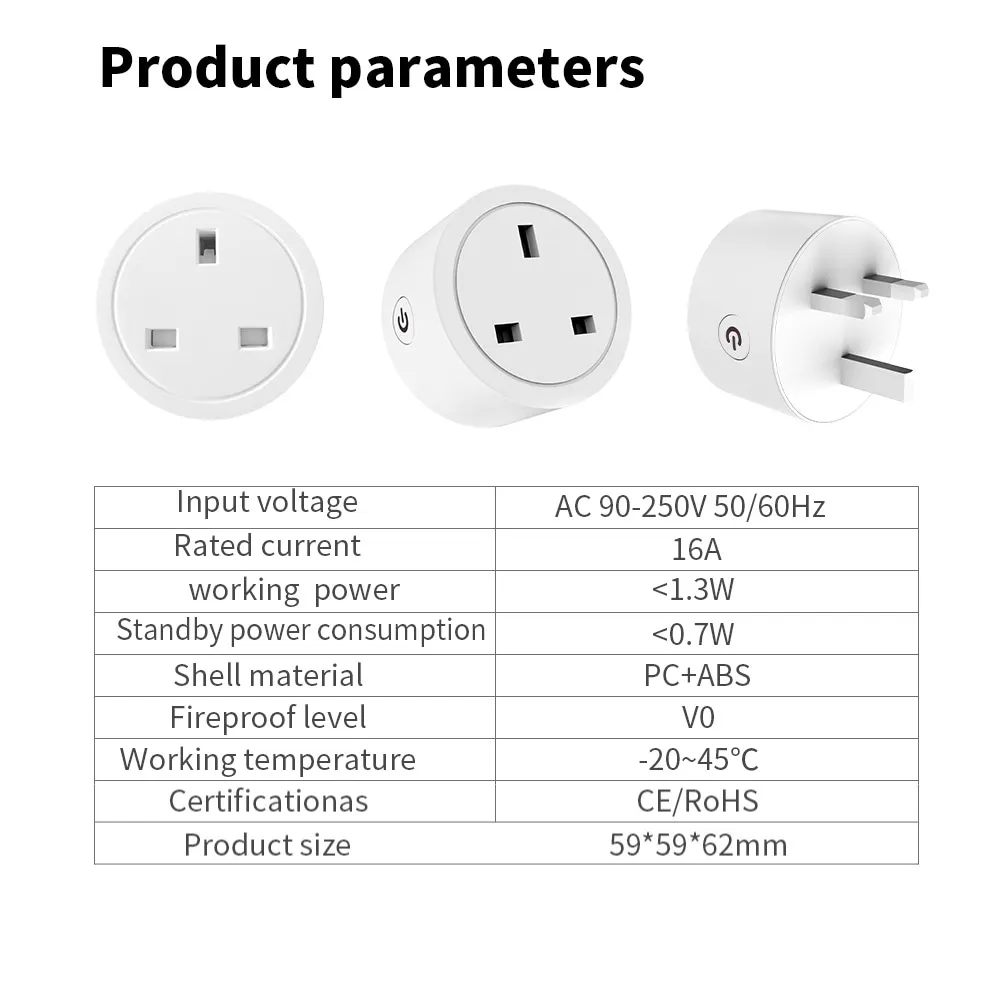

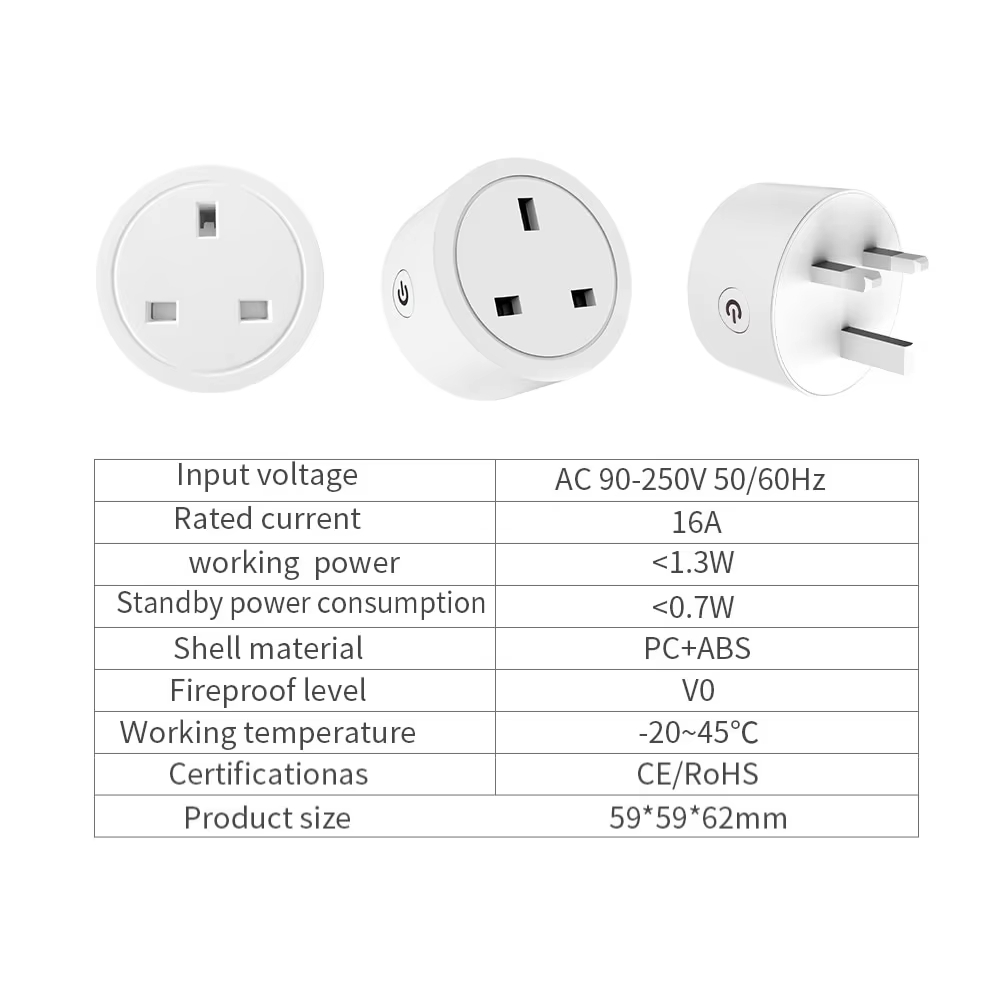

Product Display
