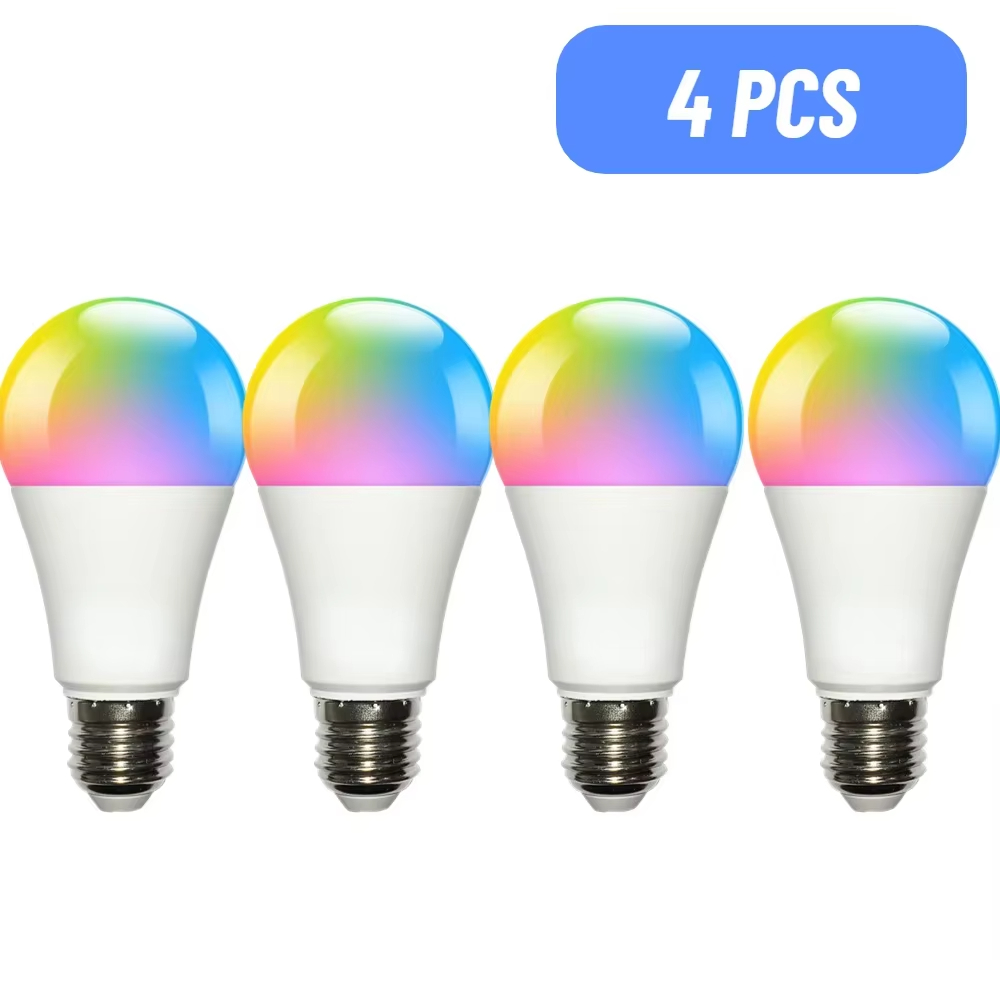

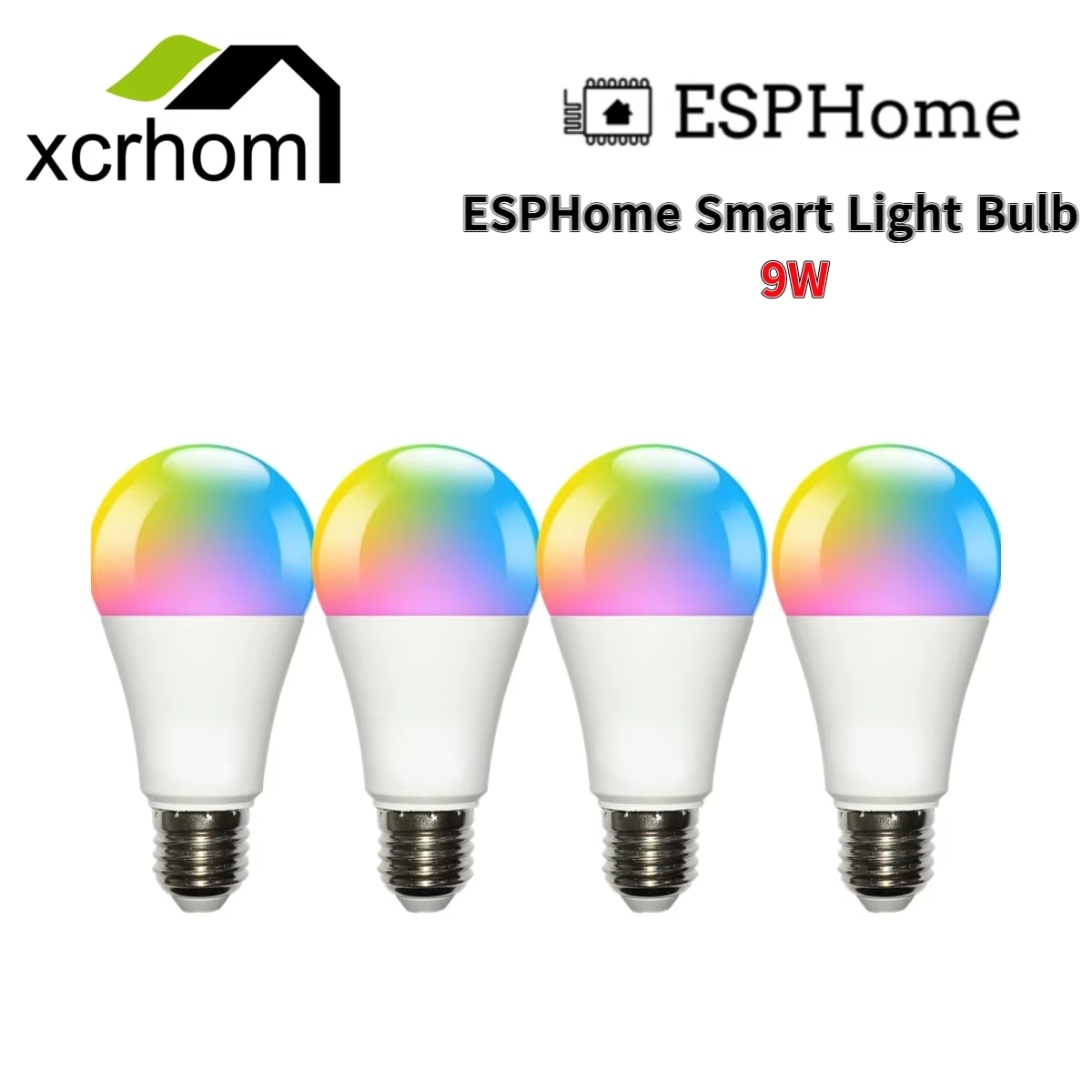

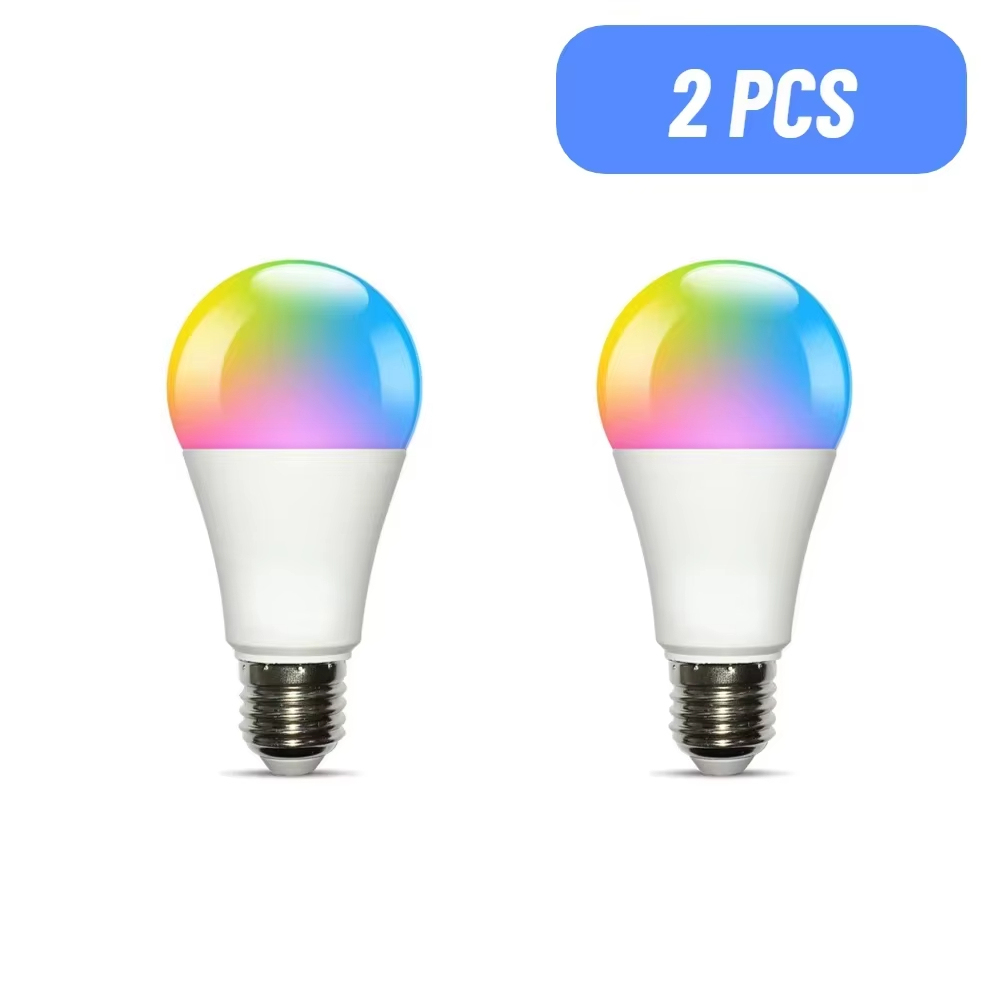

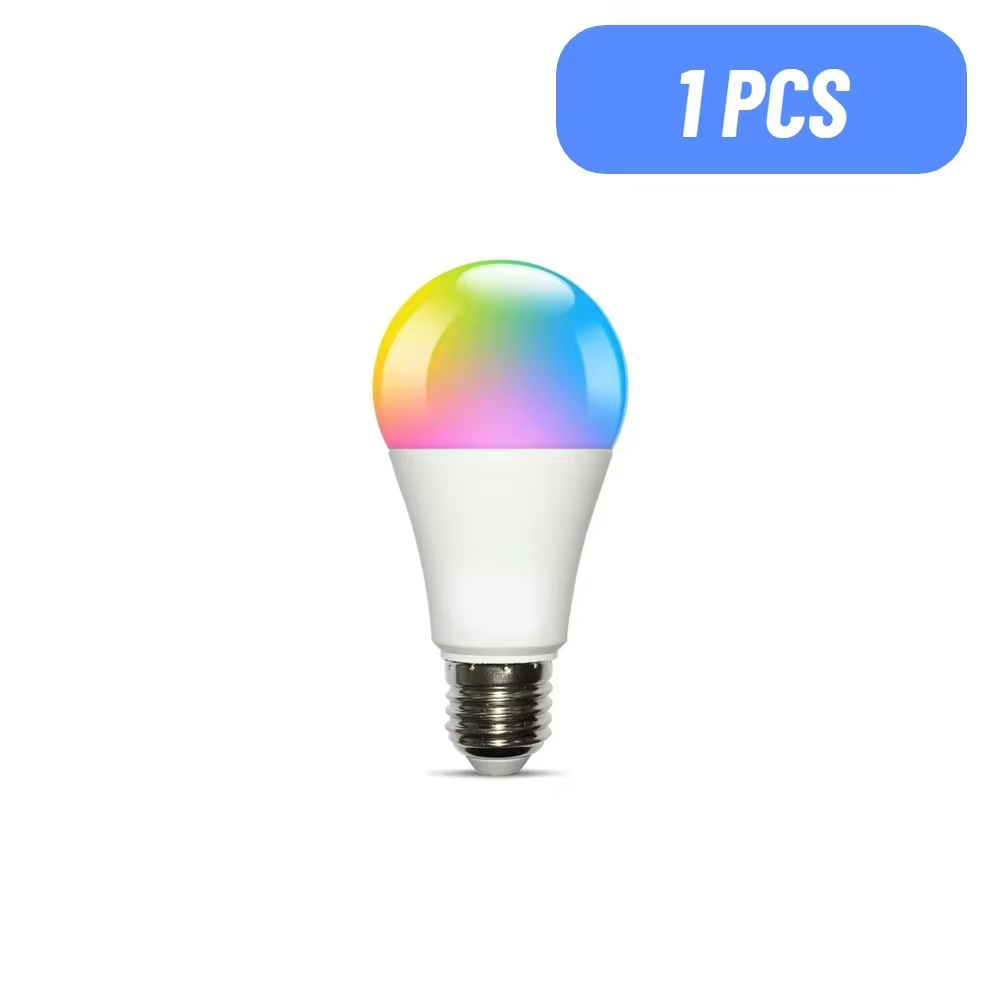

ESPHome Smart Light Bulb ESP8285 HA 9W E27 WiFi LED Lamp Bulbs Works With Home Assistant
Note
1. How to restore the device.
A: - With Button : Long-Press button over 5 seconds
Without Button : Reset the device over 3 times
with an interval of no more than 5 seconds each time.
The device will self-test it and release the AP SSID
about 5 seconds later.

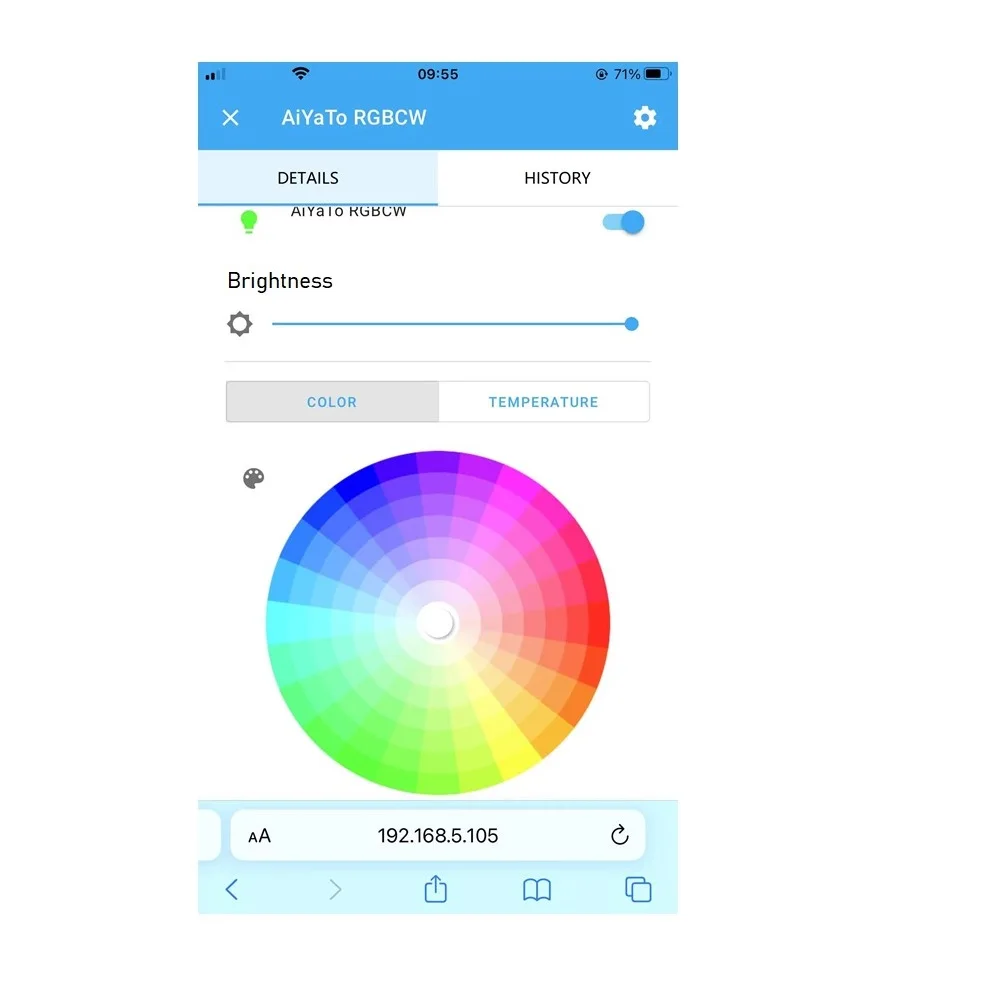

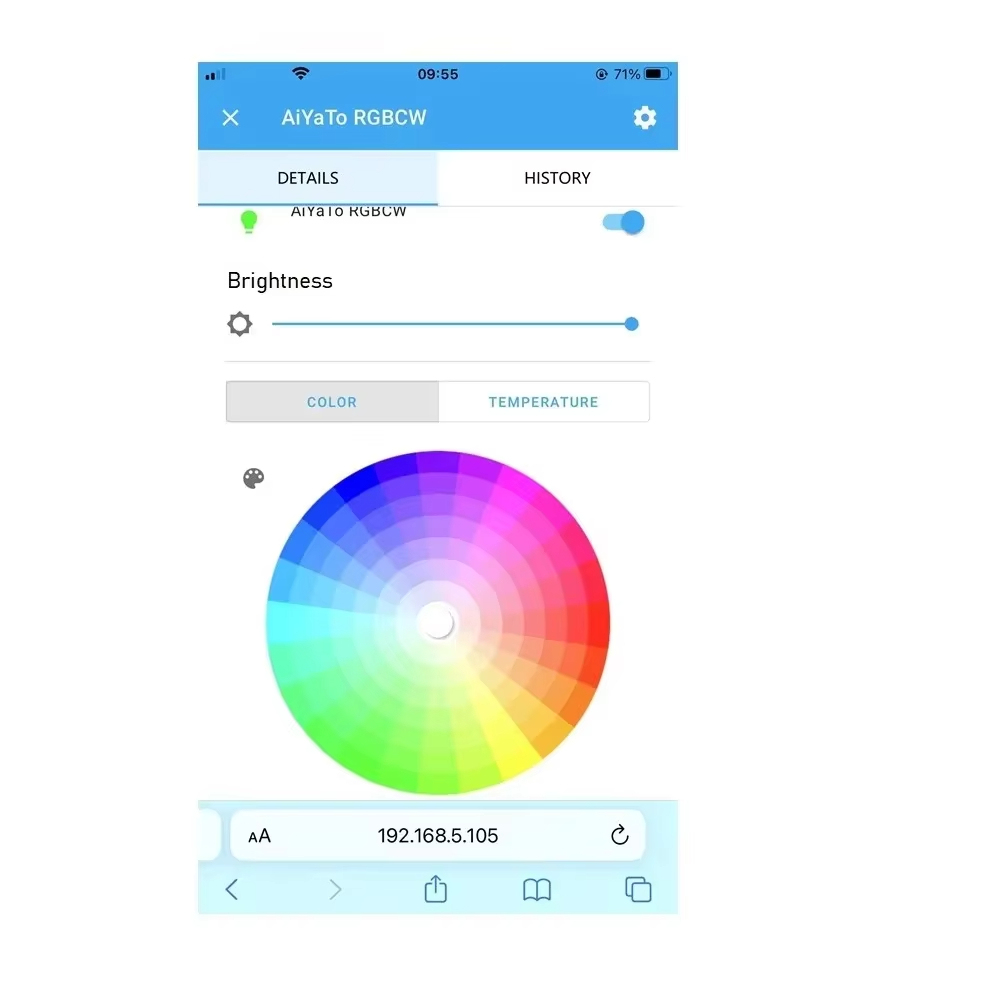

2. HA control
A: Power the device, the light product will light up even
though you software-shutdown it. And the other
product will keep the last device state.
3. OTA upgrade
A. In browser, land "aiyato-xxxx-xooxox" or IP address
found in Wi-Fi router background. Enjoy it with
ESPHome plugin or YAML file.
4. Manually add device to HA
A: If HA does not automatically discover device, add
integration in the lower right corner of the Devices &
Services page, search for ESPhome, and enter the
following host address: aiyato-xxxxx-xxxxx (xxxxxx is
MAC address of your device) or you can view the IP
address of the device on the router management page.
Retain the default port number
"6053" and submit the
configuration.
5. When to save the device state
A: Device state updates automatically every ONE minute.
6. ESPHome ONLY support 2.4GHz Wi-Fi router
Steps

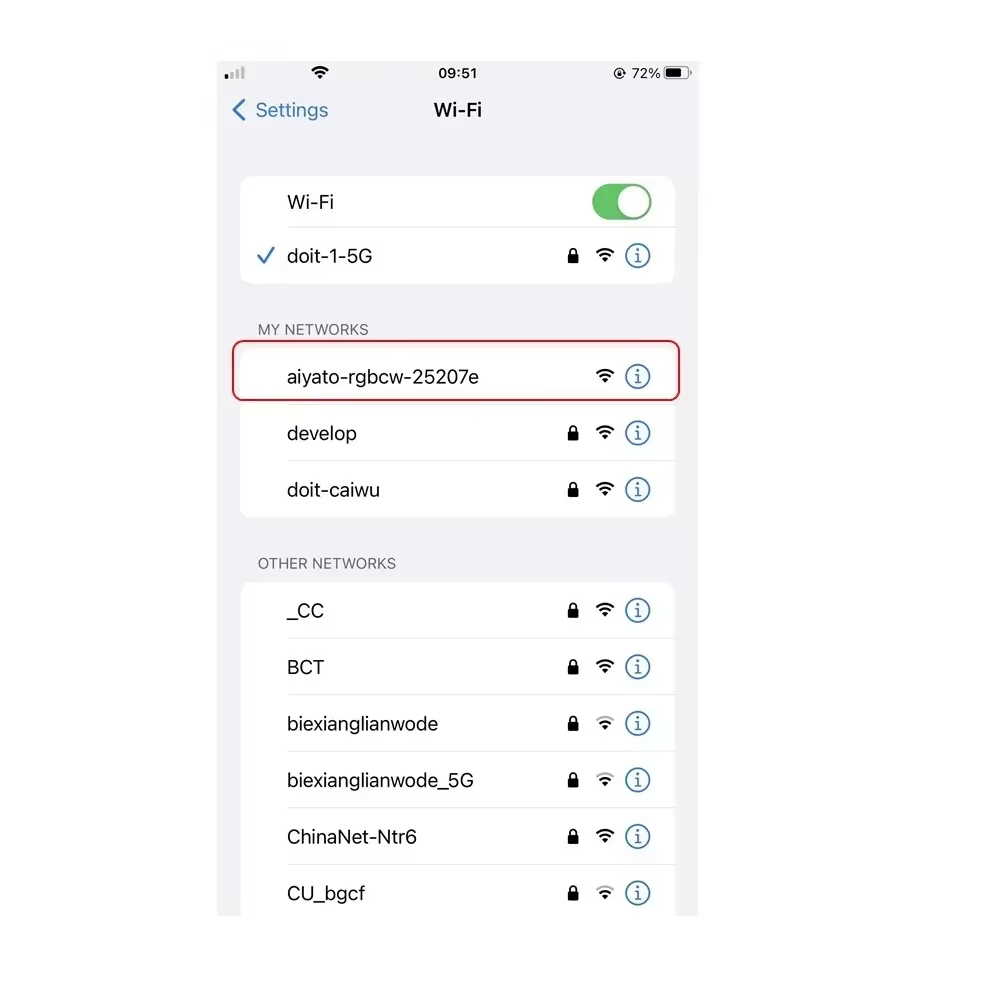

Step 1:
Power device, and use phone to connect AP SSID
named "aiyato-XxXX-XXXXX".

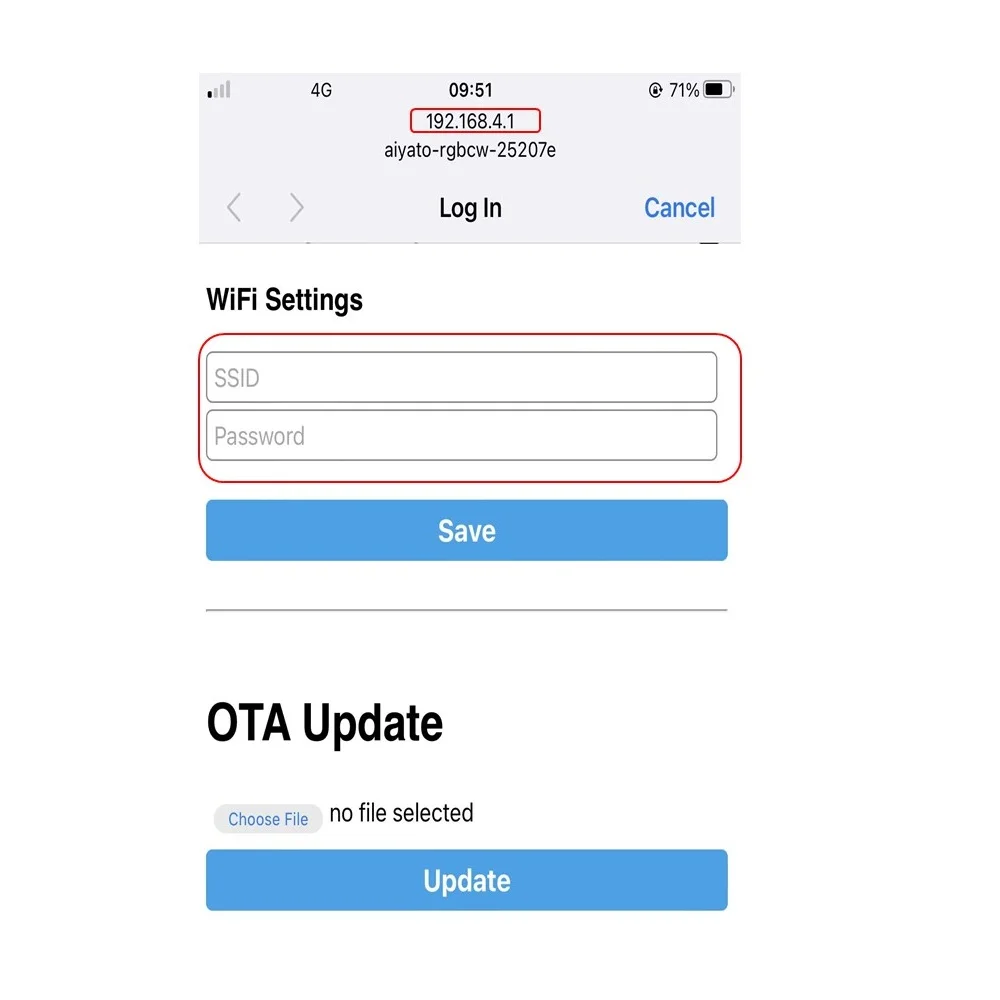

Step 2:
In pop-up window, key your CORRECT Wi-Fi router
name and password. If window doesn't pop-up, please
land http://192.168.4.1 in phone's browser.
Step 3:
Home Assistant will find a device named
"aiyato-Xxxx-
xxocxx', and join it in. The last 6 number is device's
MAC address.
Step 4:
Enjoy it.
User Manual（ESPHome Device）
ESPHome supports light, switch, etc
AP SSID: aiyato-xxxx-XxXXXX
Factory Mode:
- With Button : Long-Press button over 5 seconds
- Without Button :
Reset the device over 3 times
with an interval of no more than 5 seconds each time
Features
-- Detected by Home Assistant
-- Controlled by MQTT, Web UI, HTTP, etc
-- Using times, scripts, rules
-- Open source
-- Use ESP8285-2M as MCU
Parameters
● Fitting: A60 E27
● Input: 90~250V AC, 50~60Hz
● Brightness: 850Lumens
● Wi-Fi: 2.4GHz(only)
● Wattage: 9W (60W Equivalent)
● Color：RGB&Warm&Cool
● Multicolor range: 2700K-6500K RGBCW
